# Copyright 2024 Apheleia
#
# Description:

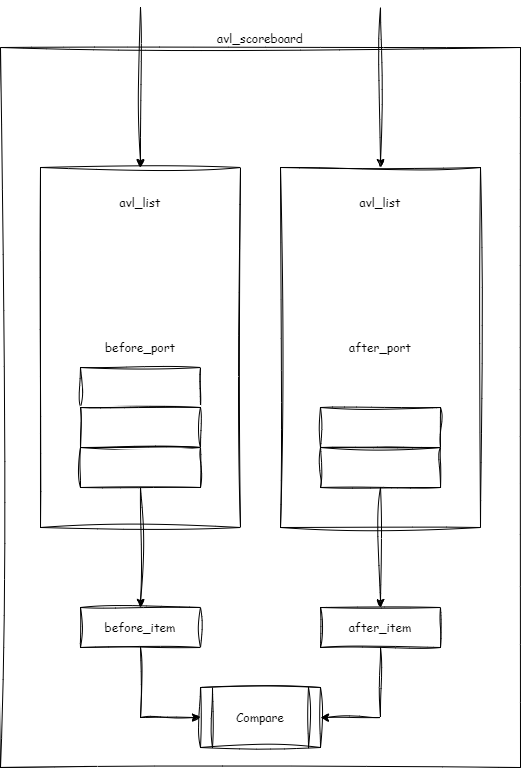

# Apheleia scoreboard example
import avl
import cocotb
class example_item(avl.Object):
def __init__(self, name, parent):
super().__init__(name, parent)
self.value = None
class example_env(avl.Env):
def __init__(self, name, parent):
super().__init__(name, parent)
self.sb = avl.Scoreboard("sb", self)
self.sb.set_verbose(True)
async def run_phase(self):
self.raise_objection()
for i in range(10):
await cocotb.triggers.Timer(1, units="ns")
item = example_item("item" + str(i), None)
item.value = i
self.info(f"Item : {item.get_name()}")
self.sb.before_port.append(item)
self.sb.after_port.append(item)
self.drop_objection()
@cocotb.test
async def test(dut):
e = example_env("env", None)
await e.start()
